| Application | Manufacture of blades, guides, bearings and precision parts, machine parts |
|---|---|
| Machining range | 200-600mm width,2000-6000mm length |
| channel height | 150-250mm |

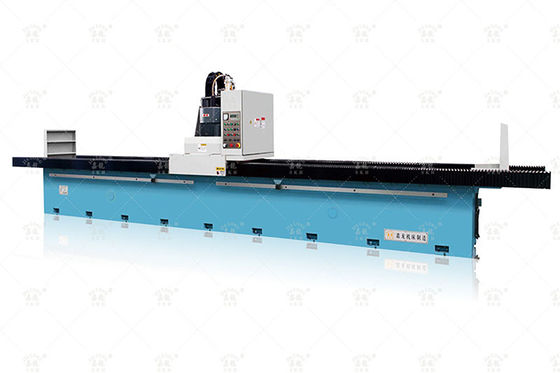

The machine tool is a long rectangular machine tool. It consists of a machine bed, a long rectangular worktable, a horizontal guide rail, a vertical guide rail, a cooling system, a lubrication system, and an electrical control system. Compact structure, strong rigidity, suitable for heavy-duty and heavy grinding. It is mainly used for the plane grinding of long workpieces, and the long rectangular worktable is fixed in the bed. The grinding head moves horizontally along the bed. Compared with traditional machine tools, it reduces floor space. The feeding and moving mechanism adopts the combination of ball screw and frequency conversion servo motor. It adopts advanced PLC control system and servo system, which can realize program control and timing and quantitative automatic processing. The lubrication system can realize automatic timing and quantitative lubrication. And can automatically adjust the length of time and the amount of oil from the control system. This machine tool is mainly used for high-power and powerful grinding of planes such as guide rail manufacturing industry, blade manufacturing industry, bearing manufacturing industry, and machining industry. This machine tool has the characteristics of high precision, high grinding efficiency, simple operation and maintenance, and high degree of automation. It can easily manipulated by one person and reduce the cost of human resources.
Machining range: 200-600mm width, 2000-6000mm length. Gallery Height 150-250mm.
|
|
